The Turnkey® internet iVIBE provides remote on-site multichannel monitoring of vibration with data logging and automatic alarms via email, text messaging, or a visual traffic light system. Alarm types and thresholds for vibration and noise are configured by the user and their thresholds can be set to depend on the time of day.
The Turnkey® internet iVIBE provides remote on-site multichannel monitoring of noise and vibration with data logging and automatic alarms via email, text messaging, or a visual traffic light system.
Alarm types and thresholds for vibration and noise are configured by the user and their thresholds can be set to depend on the time of day. iVIBE connects to Turnkey’s AirQWeb cloud serverLive and historic PPV, Leq, L10, L90 and other readings are available to view on your PC, smart-phone or tablet, anywhere, anytime. Other statistical sound indicators over arbitrary periods can be calculated within AirQWeb from the uploaded readings.
iVIBE is fitted with a MEMS tri-axial accelerometer which also provides static tilt measurements. For increased sensitivity to very small vibrations, iVIBE can be fitted with a tri-axial seismic accelerometer too. The noise floor with the seismic accelerometer is less than 20 micro-g RMS, equivalent to a PPV of less than 0.01 mm/sec at 4 Hz. The noise floor with the MEMS accelerometer is about 1 milli-g RMS, equivalent to a PPV of less than 0.5mm/sec at 4 Hz.
Each tri-axial output of the accelerometers is measured 1000 times per second, and the user may set the low frequency cutoff (-3dB) to 0.2 Hz, 0.5 Hz, 1 Hz, 2 Hz or 4 Hz respectively.
Construction sites
Industrial sites
Road and site traffic
Airports
Railways
Concerts and music festivals
Sporting events
Motorsports
Nightclubs
Safe and secure recording of data with multiple backup servers.
The iDB like other analyzersconnects to Turnkey’s AirQWeb cloud server. This allows integrated monitoring and control of noise, vibration, dust, meteorology, and air quality on your site.
Along with Noise data a 3D site mapping with 3D imagery, live readings and site placements shown on Google Earth. This feature is available both for PC and mobile device.
iVIBE has an internal NiMH rechargeable battery that allows continued operation and recording for upto 48 hours in the event of a site power outage. Measurements taken during power outages are automatically uploaded to AirQWeb when site power returns.

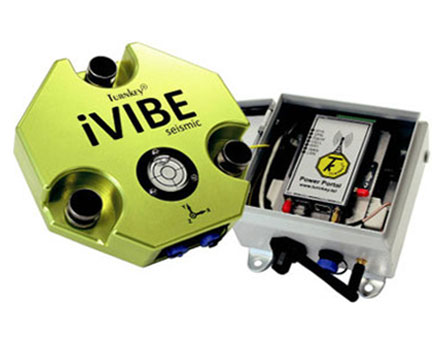

iVIBE is supplied complete with a Turnkey Power Portal. This integrates a universal input mains power supply, Turnkey WS3 web server, and 3G/4G access point into a wall mountable, waterproof, IP68 enclosure. The Power Portal and iVIBE are supplied in a Peli-case for easy storage and transportation. The iVIBE itself is sealed to IP65.
| General | |
| Power Supply | 12 VDC |
| Battery | Nickel Metal Hydride ; 6V, 2 AH mAH |
| Battery life | 10 hours after full charge Optional 12 hours battery backup available |
| Enclosure | Heavy Duty Anodized Machined Aluminium Ingot with 3 levelling feet |
| Protection | P 68 (Enclosure) IP 65 (sensor) |
| Operating Temperature | - 5OC to 50 OC |
| Communication O/P | RS 485, 38.4 kBaud |
| Internal Memory | 4 Mb flash |
| Reporting Interval | 1 second – 12 hours |
| Clock | Crystal controlled real time clock with battery backup |
| Calibration | 12 months interval |
| Dimensions | 210 mm diameter octagon, 50 mm deep |
| Weight | 4.4kg |
| Vibration | |
| Sampling rate | 1000 samples per second |
| Channels | X, Y, Z and vector resultant R |
| PPV Range and Resolution Range | 0.01 mm/sec to over 100mm/sec, 0.01mm/sec resolution |
| PPV noise floor (seismic) | ~0.01 mm/ sec |
| PPV noise floor (MEMS) | ~0.5 mm / sec |
| Residual noise (1 Hz, seismic) | 2.0 micro-g, RMS |
| Low frequency -3dB roll off user | selectable 0.2Hz, 0.5 Hz, 1 Hz, 2 Hz, 4 Hz |
| Measurements | PPV XYZR, dominant frequency XYZR RMS XYZR: acceleration, velocity, distance STATIC: X and Y tilt |
| Design Standards | BS 6472, 7385, 6955, DIN4140 IEC651 |
| 01/VIB/VIBRATION | Vibration Only instrument complete with outdoor kit |
| 01/VIB/VIBRATION/SOUND/x | Noise and Vibration instrument complete with outdoor kit X: Class 1 or Class 2 |
| 01/OS/WEBSERVER | Web Server Package |
